Grundfos SOLOLIFT2 C-3 - 97775317 (Domestik Atık Su Pompası)

SOLOLIFT2 C-3

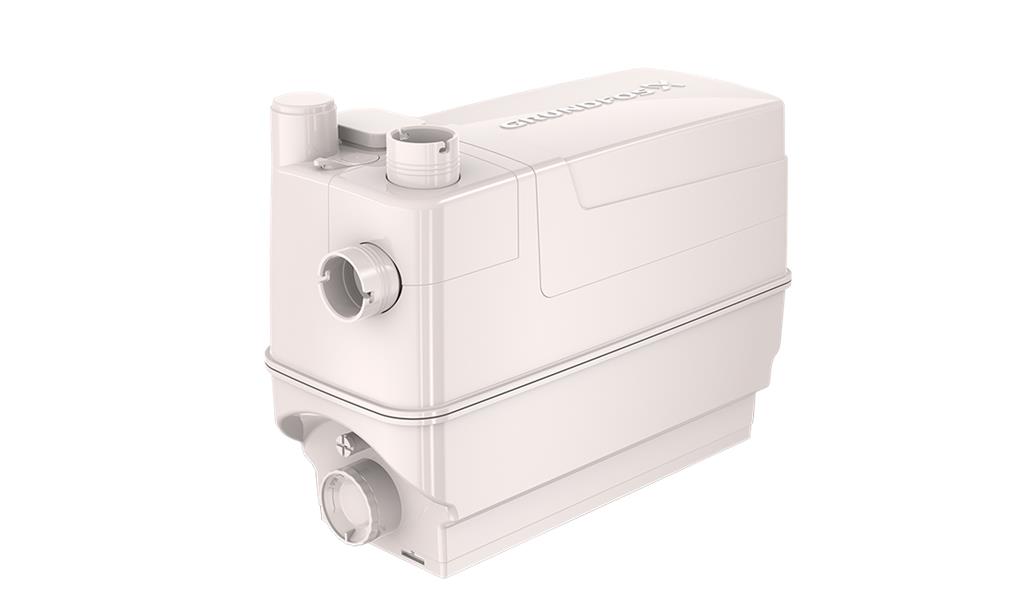

Sololift2 C-3 is a small, compact automatic lifting station suitable for pumping of greywater (w/o faeces) off places in private dwellings where wastewater cannot be led directly to the sewer by means of a natural downward slope.

Sololift2 C-3 is typically used for:

cabinet showers, washbasins, bath tubs, washing machines (max. 90°C) and dishwashers in basements below sewer level or in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established.

Sololift2 C-3 is suitable for installation under a washbasin or particularly for confined space conditions in prewall constructions and built-in cabinets. Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor.

The compact lifting station is equipped with

Cable with or without plug (see technical data)

Horizontal or vertical fastening possibility of discharge hose connector with several adaptors for pipes with Ø22-40mm

Integrated non return valve

Dry and high performance motor unit incl. thermal protection, level switch and controller

Flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40

Manual anti clogging function and separate drain connection for service

Venting valve with overflow protection

Uplift fixation clips

Design according to EN12050-2 and production inspection by external institute with unique features focused on quick installation, long lasting operation and easy clean service.

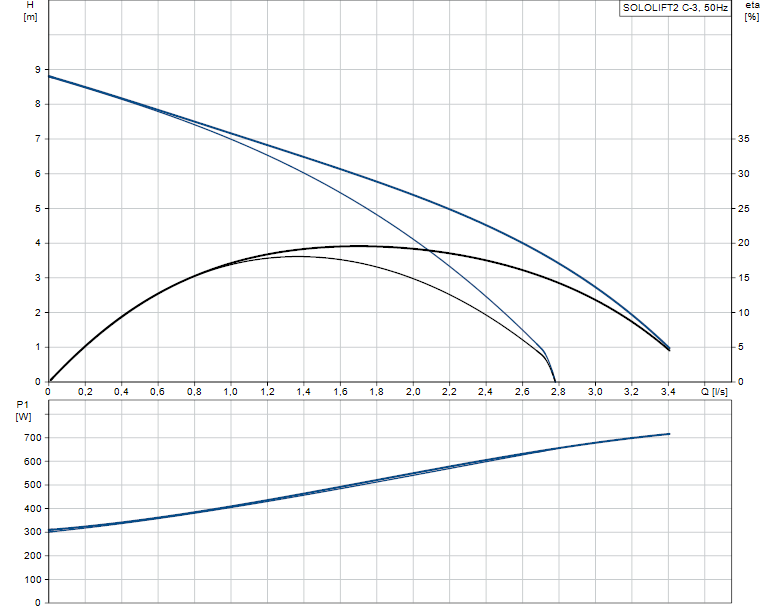

Note: The discharge adaptor can be mounted vertical or horizontal. Vertical installation increase the flow (s. databooklet and curves)

Sıvı:

Pompalanan sıvı: Herhangi bir viskoz sıvı

Maximum liquid temperature: 75(90) °C

Yoğunluk: 998.2 kg/m³

Tekniksel:

Etiket üzerindeki onaylar: CE,TR,VDEEMV,VDE,MORO

Eğri toleransı: ISO9906:2012 3B

Materyaller:

Tank: Plastic

Kurulum:

Pompa girişi: 32/36/40, 36/40/50

Pompa çıkışı: 22/25/28/32/36/40

Grafitlerin adedi: 3X0,75MM2

Elektriksel veri:

Giriş gücü - P1: 640 W

Ana frekans: 50 Hz

Nominal voltaj: 1 x 220-240 V

Nominal akım: 3.1 A

Cos phi - güç faktörü: 0.9

Nominal hız: 2800 rpm

Koruma sınıfı (IEC 34-5): IP44

İzolasyon sınıfı (IEC 85): F

Kablo uzunluğu: 1.2 m

Kablo tipi: H05VV-F-3G

Kablo fişinin tipi: SCHUKO

Diğerleri:

Net ağırlık: 7.75 kg

Brüt ağırlık: 9.3 kg

Danimarka VVS No.: 614365632

İsveç RSK No.: 5886547

Finlandiya LVI No.: 4965315

Norveç NRF No.: 9045711

Country of origin: RS

Custom tariff no.: 841370219000
