SOLOLIFT2 WC-3

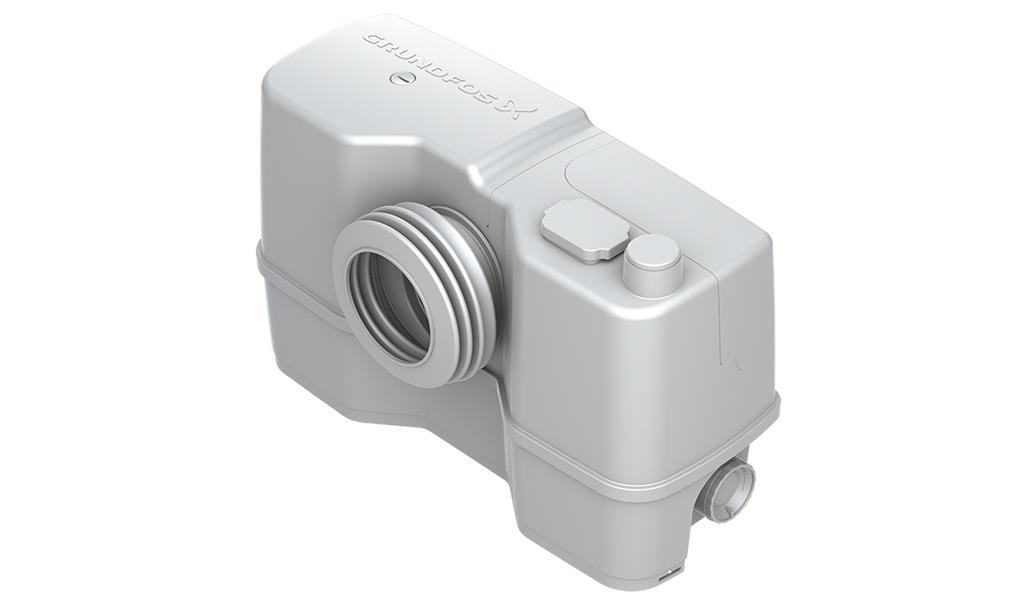

Sololift2 WC-3 is a small, compact automatic lifting station suitable for pumping of wastewater off places in private dwellings where wastewater cannot be led directly to the sewer by means of a natural downward slope.

Sololift2 WC-3 is suitable for pumping wastewater from a toilet containing toilet paper and faeces with additional connections on the lid and to the sides of the tank for e.g. washbasin, shower or bidet.

The pumping of liquids containing other material may cause faults and limit the scope of guarantee.

Sololift2 WC-3 is typically used to dewater:

toilet, washbasin, shower and bidet in basements below sewer level,

in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established. Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor.

The compact lifting station is equipped with

Cable with or without plug (see technical data)

Horizontal or vertical fastening possibility of discharge hose connector with several adaptors for pipes with Ø22-40mm

Integrated non return valve

Dry and high performance motor unit incl. thermal protection, pressure switch and controller

DN100 toilet connection hose

Two flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40

Slot for an alarm board with buzzer (accessory)

Manual anti clogging function and separate drain connection for service

Venting valve with overflow protection

Uplift fixation clips

Design according to EN12050-3 and production inspection by external institute with unique features focused on quick installation, long lasting operation and easy clean service.

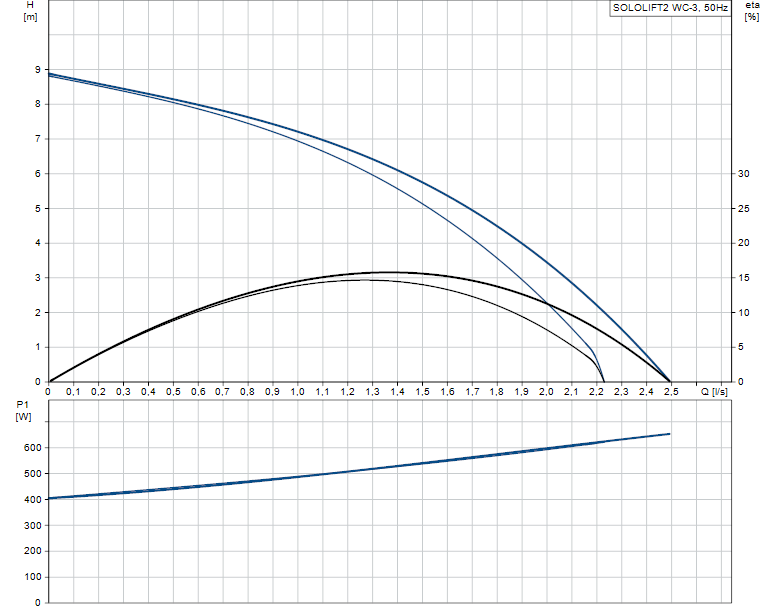

Note: The discharge adaptor can be mounted vertical or horizontal. Vertical installation increase the flow (s. databooklet and curves)

Sıvı:

Pompalanan sıvı: Herhangi bir viskoz sıvı

Maximum liquid temperature: 50 °C

Yoğunluk: 998.2 kg/m³

Tekniksel:

Etiket üzerindeki onaylar: CE,TR,VDEEMV,VDE,MORO

Eğri toleransı: ISO9906:2012 3B

Materyaller:

Tank: Plastic

Kurulum:

Pompa girişi: 32/36/40, 36/40/50, DN 100

Pompa çıkışı: 22/25/28/32/36/40

Grafitlerin adedi: 3X0,75MM2

Elektriksel veri:

Giriş gücü - P1: 620 W

Ana frekans: 50 Hz

Nominal voltaj: 1 x 220-240 V

Nominal akım: 3 A

Cos phi - güç faktörü: 0.92

Nominal hız: 2800 rpm

Koruma sınıfı (IEC 34-5): IP44

İzolasyon sınıfı (IEC 85): F

Kablo uzunluğu: 1.2 m

Kablo tipi: H05VV-F-3G

Kablo fişinin tipi: SCHUKO

Diğerleri:

Net ağırlık: 7.74 kg

Brüt ağırlık: 9.27 kg

Danimarka VVS No.: 614363632

İsveç RSK No.: 5886546

Finlandiya LVI No.: 4965313

Norveç NRF No.: 9045715

Country of origin: RS

Custom tariff no.: 841370219000
